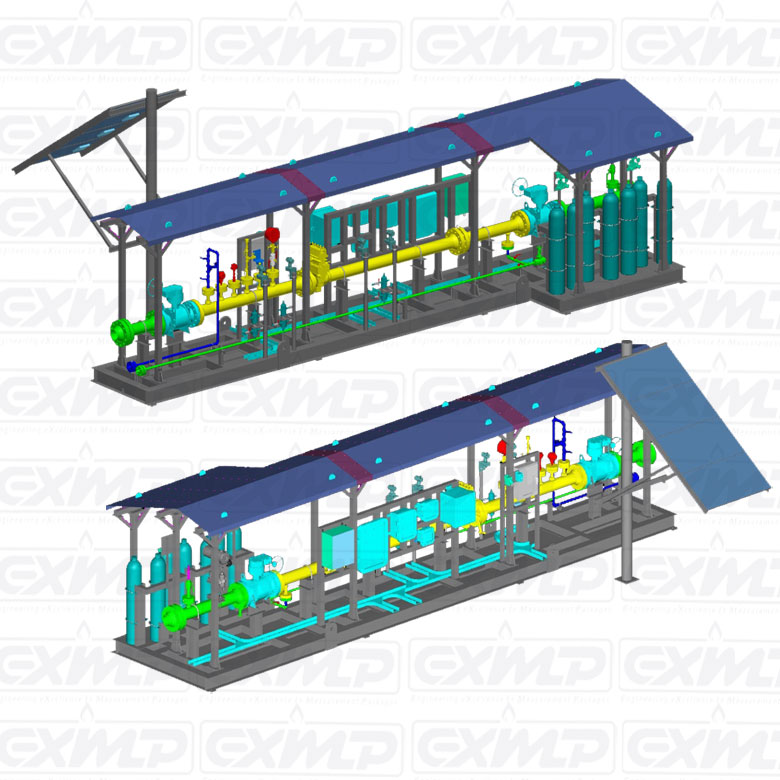

EXIMP builds made-to-order gas and liquid meter skids at our state-of-the-art facility in Calgary and Texas.
Metering System
Metering System
Metering System
MANUFACTURER OF EXCELLENT MEASUREMENT PACKAGES
EXIMP international has extensive experience as a specialized engineering contractor for design, fabrication and commissioning of flow measurement packages for worldwide Oil & Gas industry.
As an independent integrated solutions provider, EXIMP objectively analyses the various metering technologies available and selects the best technically sound and cost effective solutions without any bias.
We strive to offer the best techno-commercial solutions as per client’s specific applications and as per industry codes and standards, regulatory rules and guidelines.
LIQUID AND GAS FLOW METERING SYSTEMS
EXIMP offers both liquid and gas flow metering systems with various types of flowmeters such as ultrasonic, turbine, Coriolis, DP meters etc. Our independent position lets us offer our customers optimized and process-fit metering packages.
FLEXIBILITY & OWNERSHIP
Our flow metering systems are skid mounted and fabricated in-house. This helps us offer flexibility and highest quality during project execution.
Our packages come with EXIMP’s full system responsibility which includes:
- Electrical, mechanical and instrument engineering
- Fabrication assembly and testing
- Project management
- Flow computers
- Software programming
- Control panels
- Certification
- Integration with clients control system
- Installation commissioning and start-up assistance
- Training
In addition to this, our systems can be provided with quality gas measurement through dew-point analyzers with enclosures. All this is integrated with a supervising system capable of providing operation for the installed flowmeters.
INSTRUMENTATION AND FIELDBUS SOLUTIONS
EXIMP combines world-class products with unparalleled application expertise and industry knowledge. The current generation of Fieldbus-capable devices and systems from EXIMP provide true interoperability, allowing you the freedom to select the most appropriate devices and Fieldbus for your application. Our instrumentation product range includes transmitters, recorders, indicators, flow meters, analyzers and valves. Our Fieldbus offers guarantee safe, secure and reliable operations through their unique built-in redundancy.
A gas flow computer that incorporates a fully programmable PLC that can be used for process control, valve switching, pressure control and more.
A Modbus multivariable transmitter measures process temperature, process pressure and differential pressure and offers both Ethernet and Serial communications. Configurable through our software this transmitter includes a PID controller, analog output and LCD display.
Solar-powered, single run EFM has integrated Bluetooth ® wireless technology and radio communications for drive-up and remote connections. The multi-run gas flow computer software module can be used in the measurement of up to ten gas flow runs. This product converts any of the EXIMP controllers into a full function gas flow computer.
GAS ANALYSIS
EXIMP helps you maintain good standards of quality control. Our products include sampling systems and analyzers that measures pH, density, conductivity and turbidity.
We also offer gas chromatographs, mass spectrometers, FTIR spectrometers and photometers (IR and UV).
From high-quality portable field to stand alone measurement instruments and system EXIMP offers you end to end solutions that will help you monitor, protect and control your critical processes and applications.
Whether your process is up, mid or downstream, and application demands for custody transfer meters or accurate measurement of liquid or gas, EXIMP understands that an integrated equipment and expertise solution can help give you a competitive advantage. We are the experts for dependable and accurate flow measurement systems and will work with you to analyze your unique requirements and provide answers to your technical and business related problems.
INTEGRATED DESIGN CAPABILITIES
Our group of specialized measurement engineers consciously make the right engineering decisions and thus help positively impact the project costs and design. We are adept at selecting the right metering technology, making right engineering decisions, anticipating operations and installation to design problems, which helps us avoid costly changes during execution.
The basic requirement of any flow metering package is selecting the right measuring principle. This in turn depends on the selection and sizing of the flowmeter, service fluid properties, system uncertainty, flow rates, system pressure drop etc.
Orifice System
METER TUBES
Available in two or three section designs with flow conditioning plates. The meter tube is the most critical component for accurate measurement. Meter Runs are fabricated from pipe that is selected for diameter, roundness and straightness. We offer the entire package.
FLOW CONDITIONING SYSTEM
The complete system includes a flow profile conditioning plate and a straight pipe run of ten-diameters upstream of the Sentinel meter body. The system requires the customer to provide a minimum of five-diameter straight pipe run both upstream and downstream of the installation. When used in a bidirectional flow application, the system includes an additional flow profile conditioning plate and ten-diameters of straight pipe run on the downstream side of the flowmeter.
ORIFICE FITTINGS
The Orifice Fitting is a high-quality, high-accuracy orifice fitting manufactured in a wide selection of sizes and materials. These units are built to meet or exceed ASME and ANSI specifications as well as to comply with the requirements of the latest editions of AGA-3, ISO-5167 and API-14.3. The fittings are available to meet the NACE MR-0175 specifications.
ORIFICE PLATE SEAL ASSEMBLIES
The assemblies comply with the latest editions of AGA-3 and ISO- 5167. The seal assembly mounts securely on to the existing plate carrier with setscrews. it comprises of a stainless steel seal and retainer ring. Standard size O-Ring seals in a variety of compositions are incorporated. A solid seal is established both on the orifice plate and on the seal surfaces of the orifice fitting body. This unit simplifies orifice plate changing.
Stainless Steel internals are also available to meet extreme corrosive applications.
These fittings are designed and constructed to allow orifice plate replacement or inspection under pressure without interruption of flow in the line.
CONFORMANCE AND REPORTING
- All fittings come standard with a documentation package including hydro test, functional test, inner valve seal test, quality control inspection report and material test reports
- Traceability is maintained in accordance with the ISO-9001 Quality Control Program
- When requested, radiography, stress relief, ultrasonic and liquid dye penetrate tests can be performed with the submission of the relative report
- An AGA 2000 inspection report is included with the purchase of every fitting
- The documented tests include:
- I.D. Bore Tolerance
- Instrument Tap Diameter
- Instrument Tap Location
- Tap Communication
- Orifice Eccentricity
- Bore Roughness
- Bore Inside Diameter
CURRENT PRODUCTION CAPACITIES:
Dual Chamber:
- 2″ through 12″ in 150 through 1500 ANSI
- 16″ in 150 through 900 ANSI
- 20″, 24″ and 26″ in 150 through 600 ANSI
Single Chamber:
- 2″ through 16″ in 150 through 900 ANSI
- 8″ through 12″ single chamber fittings are fitted with a gear shaft to assist with insertion and retraction of the plate carrier
- All Single and Dual Chamber fittings are available in weld by flange, flange by flange or weld by weld configurations
- Materials available are A216 WCB, A352 LCC and CF8M Stainless Steel
ORIFICE PLATE SEAL ASSEMBLIES
The assemblies comply with the latest editions of AGA-3 and ISO- 5167. The seal assembly mounts securely on to the existing plate carrier with setscrews. It comprises of a stainless steel seal and retainer ring. Standard size O-Ring seals in a variety of compositions are incorporated. A solid seal is established both on the orifice plate and on the seal surfaces of the orifice fitting body. This unit simplifies orifice plate changing. Two styles are available depending upon the application:
- Standard 2000 Edition Seal Assembly
- Dual Ring Orifice Plate Seal Assembly
Ultrasonic Flowmeters
These ultrasonic flowmeters are specially designed for high-accuracy gas flow measurement such as :
- Custody transfer
- Transmission and distribution
- Compressor station metering
- Any gas application where high-accuracy is required
The system employs a two-diametrical path, single-traverse meter body design with a ten-diameter upstream pipe run and a flow conditioning plate. Advanced ultrasonic transducer technology combined with signal processing optimized for speed and robustness provides the capability of the system to operate even in air at atmospheric pressure, which is important for field verification of the meter system during commissioning.
CONFORMANCE AND REPORTING
- Compliant to AGA9
- NMI approval (Netherlands B37)
- Inmetro approval
- Approval from the Italian Ministry of Industry
- BRML Approval (Romania)
- PAC Approval (China)
- Algeria Approval (ONML)
FEATURES AND BENEFITS
- Accuracy < 0.1%
- Least complicated path configuration
- True redundancy
- 70:1 turndown
- Retractable transducers
- Operational from atmospheric pressure
Turbine Flowmeters
Turbine meters suitable for natural gas and all non-corrosive gaseous media, are made of spheroidal graphite iron, cast steel or welded steel depending on the pressure rate. Several versions of the turbine meters are available.
- Special version for corrosive gas
- Mechanical counter showing total gas
- Flow in volume units (working cubic meter)
- High-accuracy
- Horizontal or vertical gas flow
- Simultaneous connection of two auxiliary instruments (e.g. integrator and load recorder) to the output couplings is possible with electronic output for computer systems
- Maximum service pressure pmax 100 bar
- Meter sizes G 40 to G 16000 (from Qmax 65 m3/h to Qmax 25000 m3/h)
- Maximum measuring range 1:50
CONNECTIONS
- DN 50 to DN 600
- Flanged to DIN PN 10, PN 16, PN 25, PN 40, PN 63, PN 100 and flanged to ANSI 150, ANSI 300, ANSI 600
Coriolis Flowmeters
We offer a full range of mass flow meters capable of withstanding vibration, abrasion and corrosive media for Liquid, sludge and gas measurement capability.
SPECIAL FEATURES
- Models to measure flow rates from as low as 0.03 kg/h up to 1,500,000 kg/h (0.07 lb/h to 3,300,000 lb/h)
- Sizes up to 12″ / DN300
- Pressure ratings up to 900bar / 13,050psig
- Temperature ratings from -255°C to +400°C / -425°F to +750°F
- Fiscal/custody transfer approvals (OIML R117 / NTEP)
- ATEX and CSA hazardous area approvals covering most of the world
- Extreme resistance to gas bubbles entrained in the process stream when compared to conventional Coriolis meters
- Unaffected by viscosity, density or pressure changes
- Multifunction measurement capability includes density and temperature
- Available with stainless steel, hastelloy, monel and tantalum wetted materials as standard
- Other materials on request
